40A Din Rail Single Phase Over Under Voltage Protector Automatic Reconnect Device with On-Off Function Voltage Display SVC Use

Phase : Single Phase

Product Name : Over and Under Voltage Protector

Over-Voltage Protector : 230~300V AC

Time delay for recovery : 1-600S

Usage : Household

Model Number : MEH-V-Protector

Brand Name : OEM

Protection : Overloading Protection, Undervoltage Protection, Under/Over Voltage

Rated Current : 1A-63A Adjustable (default 40A)

Certificate : CE / ISO9001

MOQ : 2000 pieces

Place of Origin : Zhejiang, China

Rated voltage : 220V/230VAC

Efficiency : 0.99

Under-Voltage Protector : 140~210V AC

Capacity : 0.5 kVA

Frequency : 50/60 Hz

Price : $2.95 / piece

Current Type : AC

Type : Automatic Voltage Regulator

Display Type : Digital Display

Warranty : 1 Year

Display : LED

Material : Copper, PC

Contact Now

230V AC Single Phase Adjustable Over and Under Voltage Protector with Over Current Protection Din rail mounting ON/OFF Switch

Product Description

Functions:
1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.ON/OFF Switch Control.

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9. Fault inquiry: Press the UP button from more than 12S

Product Parameters:
1.Model number:MEH-V-Protector

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V):

Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V):

Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A):

Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~600s(default:10s)

8.Power consumption : <2W

9.Electric machinery life : 100,000 times

10.Installation:35mm DIN rail

Technical parameters:


Rated supply voltage	AC 220/230V
Operation Voltage Range	AC 80v~400V (1 Phase)
Rated Frequency	50/60Hz
Electric Current(>A) setting range	1~63A
Over Voltage(>U) setting range	230~300V AC
Under Voltage(<U) setting range	140~210V AC
Error	2%
>U and <U trip delay	0.5S
Reset/start delay	1s~600s
Voltage measurement accuracy	1%
Rated insulation voltage	400V
Output Contact	1NO
Protection degree	IP20
Pollution degree	3
Altiude	<=2000m
Operating Temperature	-50°C~55°C
Humidity	<=50% at 40°C
Storage Temperature	-30°C~70°C

Default Setting:

Technical parameter	Setting range	Step	Factory setting
Over Voltage trip value	230~300V	1V	280V
Under Voltage trip value	140~210V	1V	160V
Over Current trip value	1~63A	1A	20A
Reset/start delay	1s~600s	1s	5s

Current Specification	15A	25A	32A	50A	63A
Rated operating current(ln,A)	15	25	32	50	63
Maximum operating current lmax(A,Within 10 Min)	25	30	40	60	80
Max.power of load((KW)	3.6	5.5	7	11	13.9

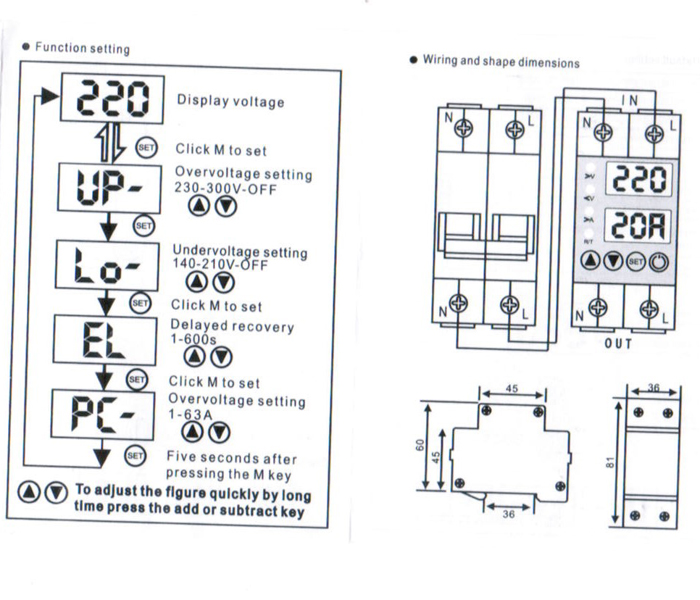

Function Setting & Wiring and shape dimensions:

Dimensions and installation dimensions:

Application Scenarios:
